Additional information
| Manufacturer | |
|---|---|
| Kit Part Number | |
| YOM From | |
| YOM To | |
| Drawing number | |

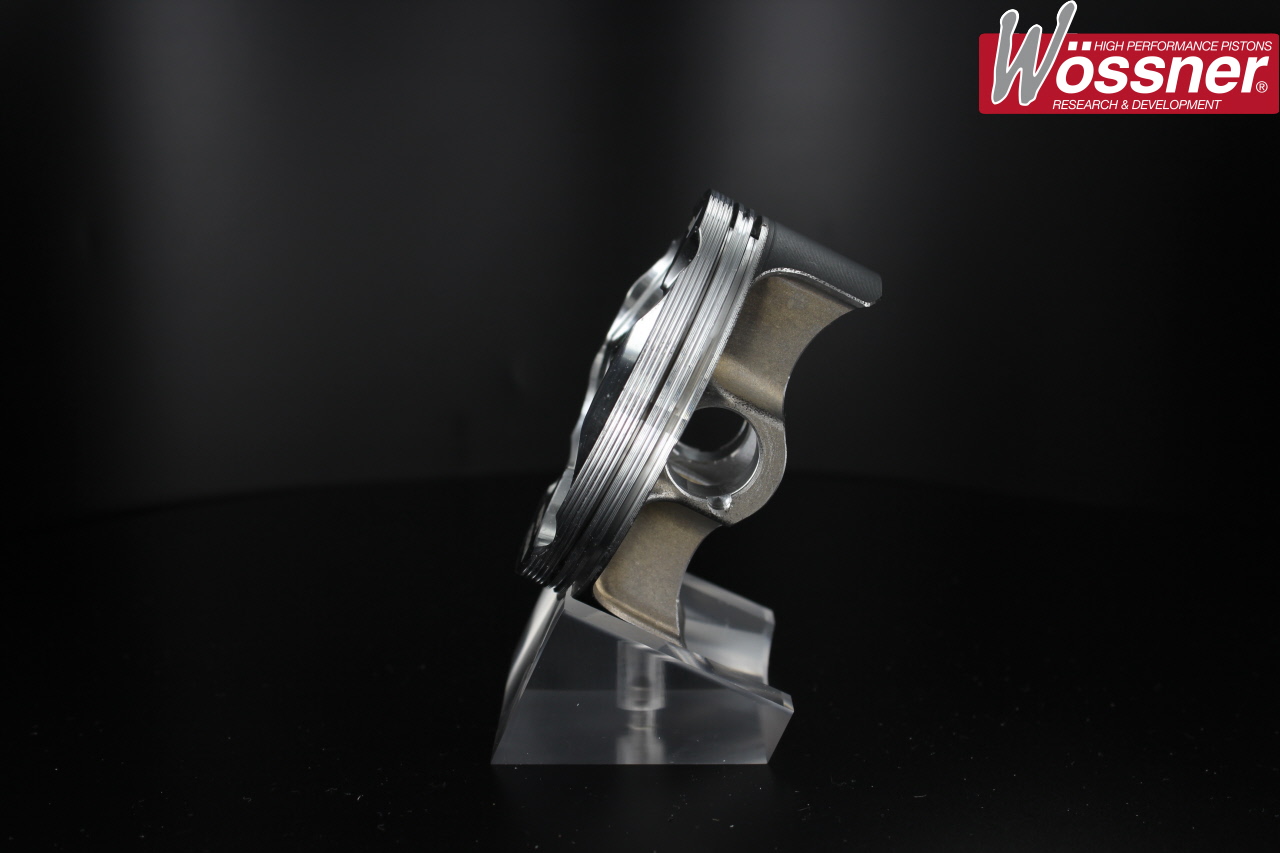

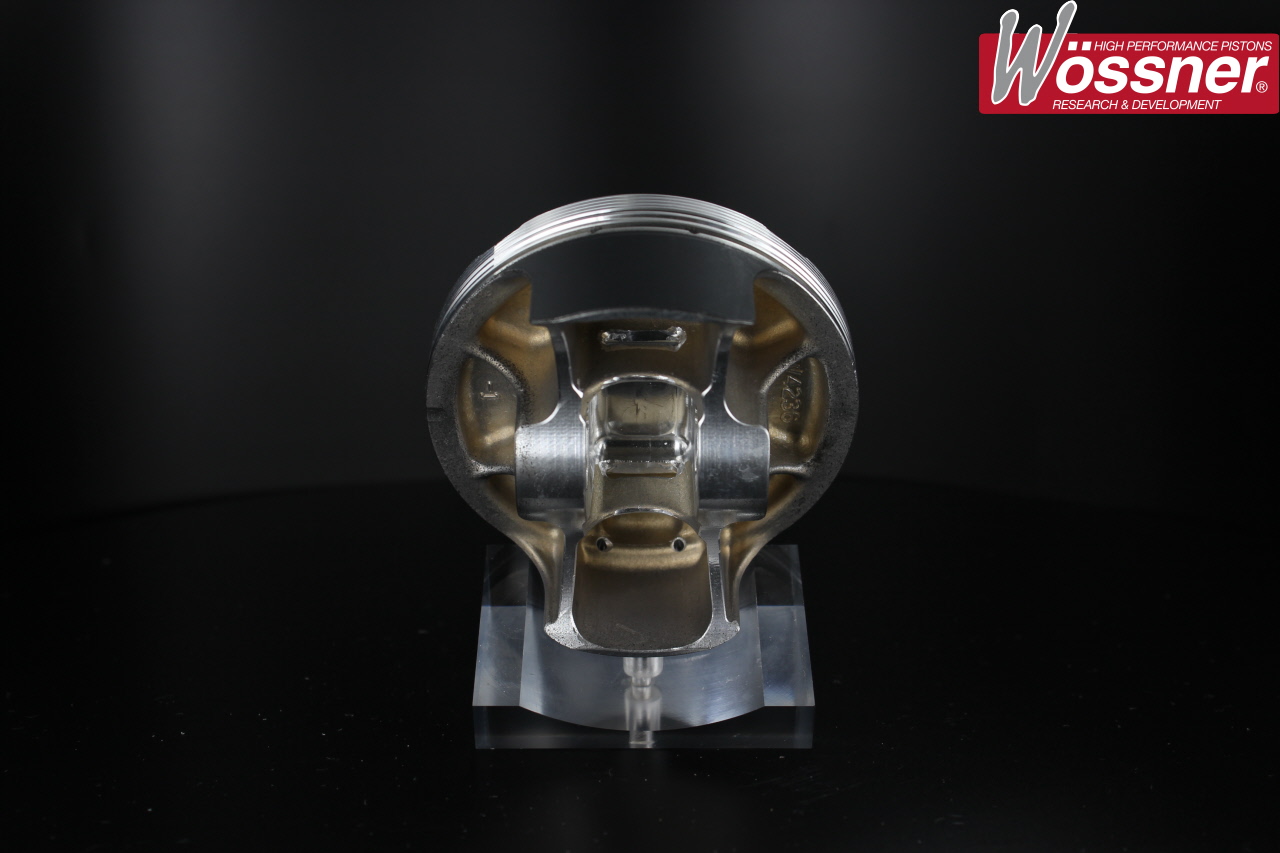

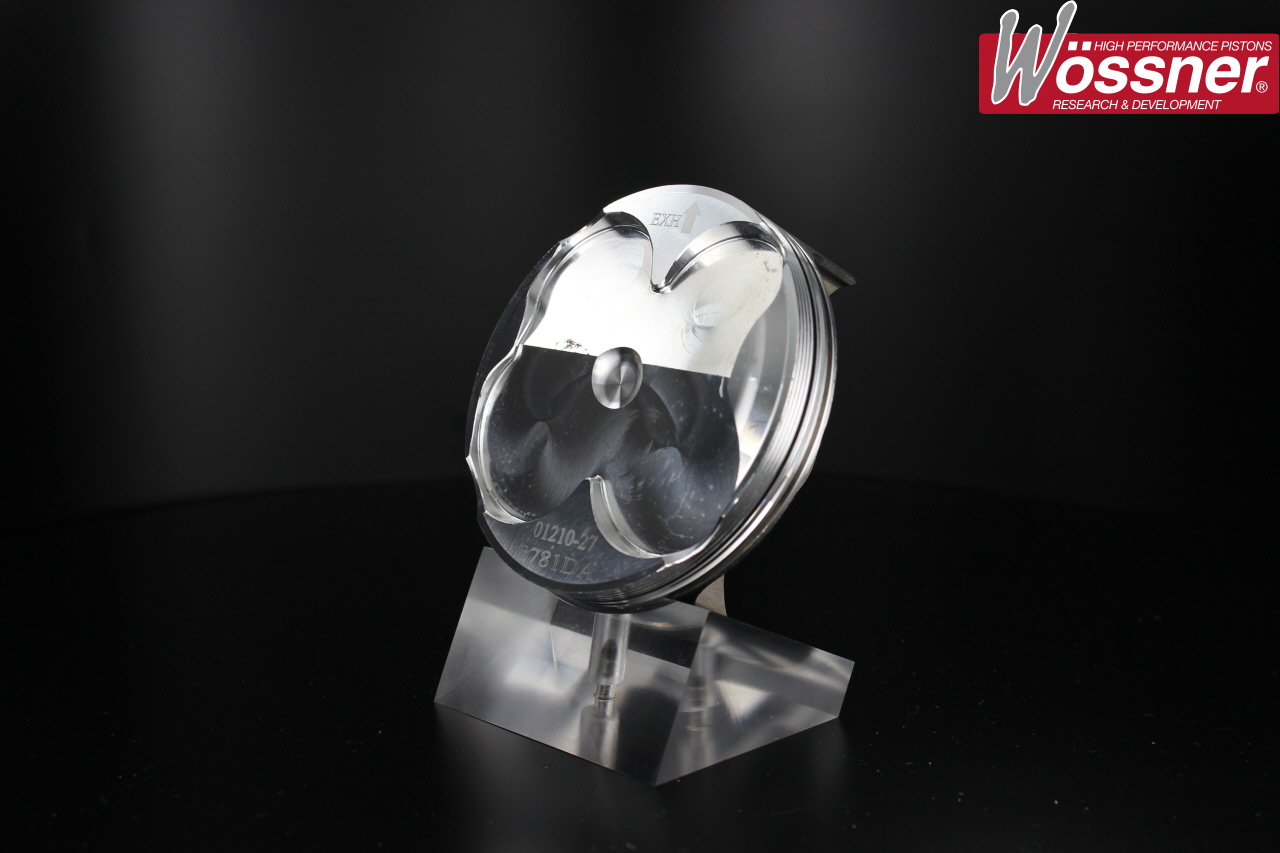

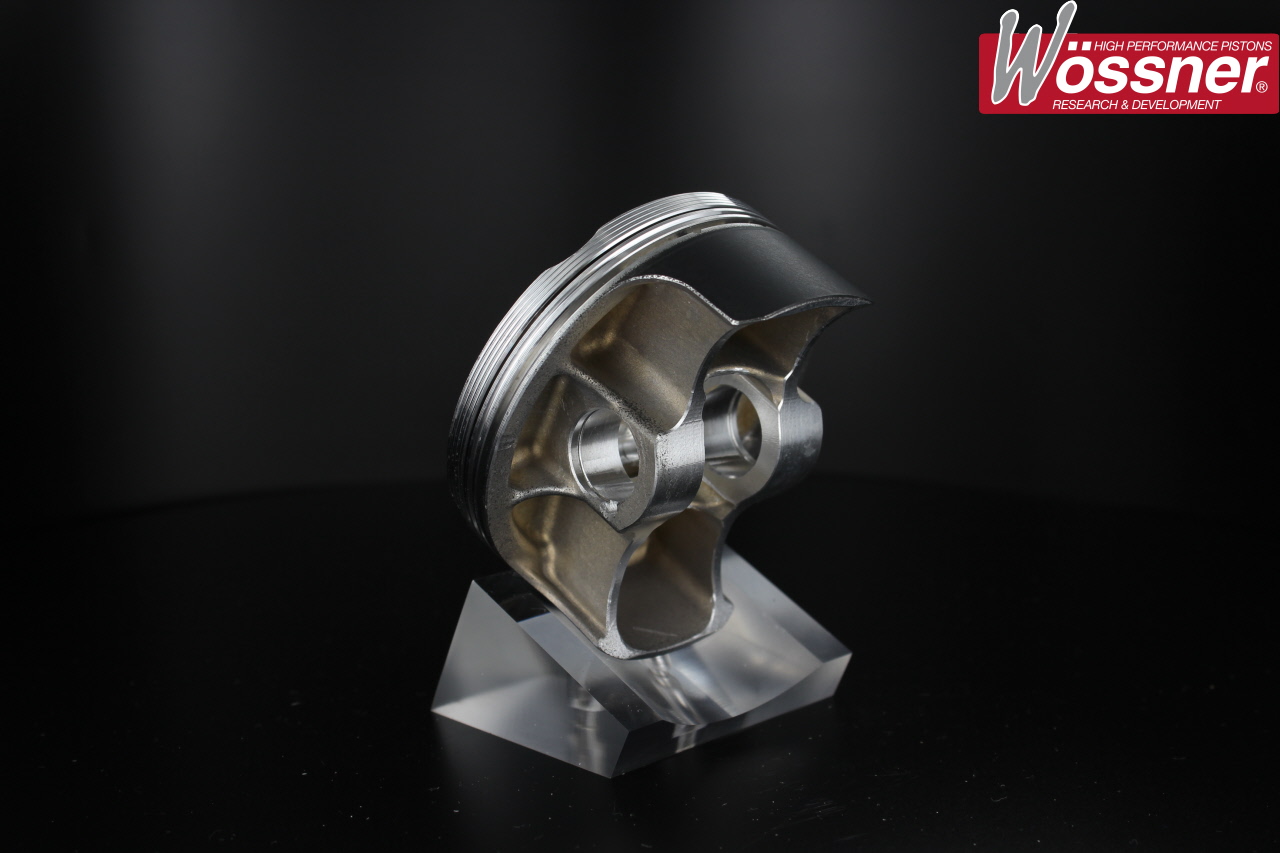

| Piston number | Piston Size: 76.96mm – 8781DA Over Size: 0mm Displacement CC: 249cc Dome / Bowl Volume: -2.6cc Wossner Comp Ratio: 13.6:1 Ring Part Number: RIK77.00D, Piston Size: 76.97mm – 8781DB Over Size: 0.01mm Displacement CC: 249cc Dome / Bowl Volume: -2.6cc Wossner Comp Ratio: 13.6:1 Ring Part Number: RIK77.00D, Piston Size: 76.98mm – 8781DC Over Size: 0.02mm Displacement CC: 249cc Dome / Bowl Volume: -2.6cc Wossner Comp Ratio: 13.6:1 Ring Part Number: RIK77.00D |
| Bore Size | |
| Stroke | |
| Compression Height | |
| OEM Comp Ratio | |
| Number of Rings | |
| Clip Part Number | |
| Pin Size | 16mm |
| Pin Part Number | |
| Cylinders | |
| Suits Wossner Con Rod | |
| Suits Woss Main Bearing | |
| Qty of bearings req | |
| Product Discount Category | |
| Product Type | Forged Piston Kits |
